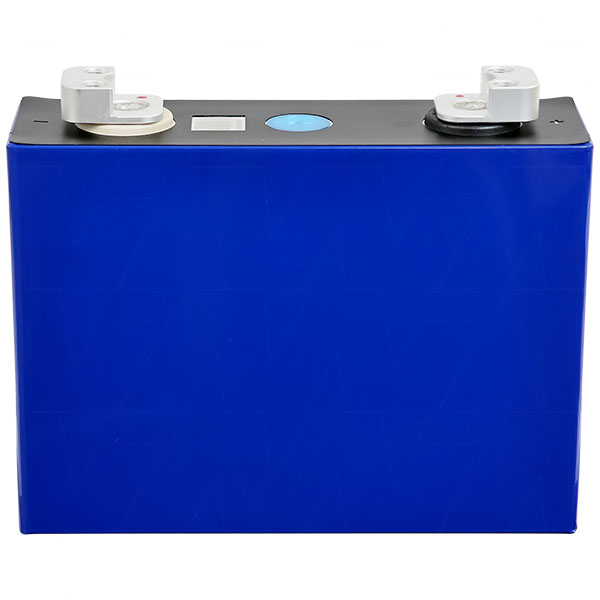

EVE LF100LA 3.2V 102Ah 326Wh High Capacity Lithium Iron Phosphate Prismatic Cell

LF100LA
EVE LF100LA 3.2V 102Ah 326Wh High Capacity Lithium Iron Phosphate Prismatic Cell

Shipping & Handling Calculator:

Post Code:

Model No	LF100LA
Selling Unit	EACH
Description	EVE LF100LA 3.2V 102Ah 326Wh High Capacity Lithium Iron Phosphate Prismatic Cell
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	3.2V
Nominal Capacity	102000mAh
Brand	EVE
Termination	M6 Bolt
Width	160mm
Height	133mm
Length/Breadth/Depth	50mm
Weight	1985g
Weight(kg)	1.985
Brand	EVE

The EVE LF100LA is a 3.2V 102Ah Lithium Iron Phophate (LiFePO4) prismatic cell designed for battery pack manufacturing.

Specifications:

Voltage (V)	3.2V
Capacity (Ah)	102Ah
Energy (Wh)	326.4Wh
Internal Resistance	≤0.5mΩ
Charging Cut-off Voltage	3.65V
Discharge Cut-off Voltage	2.5V (T>0℃), 2.0V (T≤0℃)
Standard Charge Current	50A (0.5C)
Max. Continuous Charge/Discharge Current	100A (1.0C)
Max. Pulse Charge/Discharge Current	200A (2.0C) 30 seconds
Cycle Life	4000 cycles (80% DoD)
Charge Temperature	0℃ - 55℃
Discharging Temperature	-20℃ - 55℃
