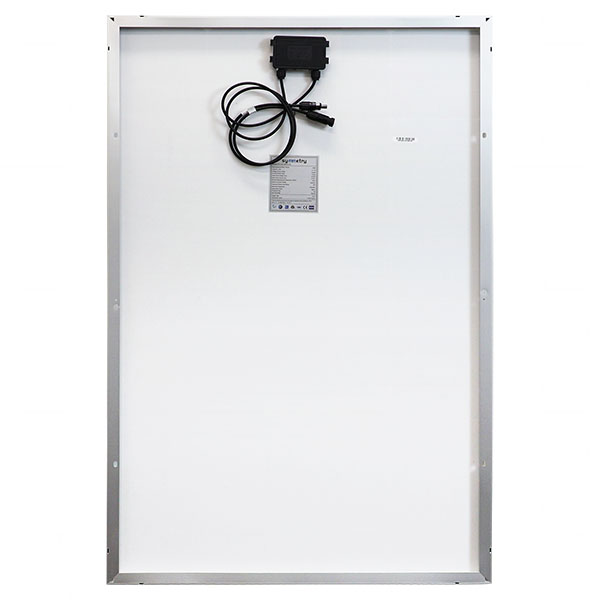

Symmetry SY3-M180W/LH4 12V 180W 72 cells 8.62A IP67 Junction Box Monocrystalline Solar Module with 2 x 0.9m leads with LH4 male & female connectors

SY3-M180W/LH4
Symmetry SY3-M180W/LH4 12V 180W 72 cells 8.62A IP67 Junction Box Monocrystalline Solar Module with 2 x 0.9m leads with LH4 male & female connectors

$261 inc GST.

Our Best Price

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	SY3-M180W/LH4
Selling Unit	EACH
Description	Symmetry SY3-M180W/LH4 12V 180W 72 cells 8.62A IP67 Junction Box Monocrystalline Solar Module with 2 x 0.9m leads with LH4 male & female connectors
Voltage	12V
Brand	Symmetry
Size	180W
Width	770mm
Height	30mm
Length/Breadth/Depth	1175mm
Weight	9610g
Weight(kg)	9.610
Product Rating	Solar Panel Freight Please note: Batteries Direct takes great care in ensuring all products are delivered in the best condition possible. With Solar Panels being considered bulky freight and logistically fragile, additional freight charges will apply. Should you require a quote, please contact our friendly Sales team. *FREIGHT INSURANCE IS MANDATORY FOR ALL SOLAR PANELS
Brand	Symmetry

Symmetry SY3 Series Solar Panels

The Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.

Features:

High Efficiency
High module conversion efficiency, through innovative manufacturing technology.
Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa).
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV
0-+5W Positive Tolerance
Detailed information in Electrical Specifications.

Multiple Applications such as:

Off Grid Systems
Solar Fountains
Caravans
Boats & Marine
Remote Lighting
Power Supplies
Telemetry
Electric Fencing

Specifications:

Rated Power - Pmax (watts)	180W
Max. Power Voltage VMP (V)	20.88V
Max. Power Current IMP (A)	8.62A
Open Circuit Voltage Voc (V)	24.80V ±3%
Short Circuit Current Isc (A)	9.15A ±3%
Max. System Voltage (V)	1000V
Max Series Fuse Rating (A)	15A
Voc Temp. Coefficients (V/°C)	-0.285%
Isc Temp. Coefficients (A/°C)	+0.045%
Temperature Range	-40°C to +85°C
Cell Technology	Monocrystalline
Number of Cells	72
Junction Box	Yes, IP67
Connectors / Output Cable	2 x 0.9m long 2.5mm square cable with LH4 male & female connectors
