Enepower EPESS-EBC25H-48-5-14.4-AIR Install Ready 48V 14.4kWh 5KVA Stand Alone Power System A/C Cooled

EPESS-EBC25H-48-5-14.4-AIR
Enepower EPESS-EBC25H-48-5-14.4-AIR Install Ready 48V 14.4kWh 5KVA Stand Alone Power System A/C Cooled

$14011 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No EPESS-EBC25H-48-5-14.4-AIR
Selling Unit EACH
Description Enepower EPESS-EBC25H-48-5-14.4-AIR Install Ready 48V 14.4kWh 5KVA Stand Alone Power System A/C Cooled
Application Residential Energy Storage, Off-Grid Solar installations, Remote power installations, Telecommunications & Infrastructure , Agricultural & Commercial Infrastructure, EV Charging
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 48V
Nominal Capacity 300000mAh
Brand Enepower
Width 650mm
Height 1315mm
Length/Breadth/Depth 1151mm
Brand Enepower

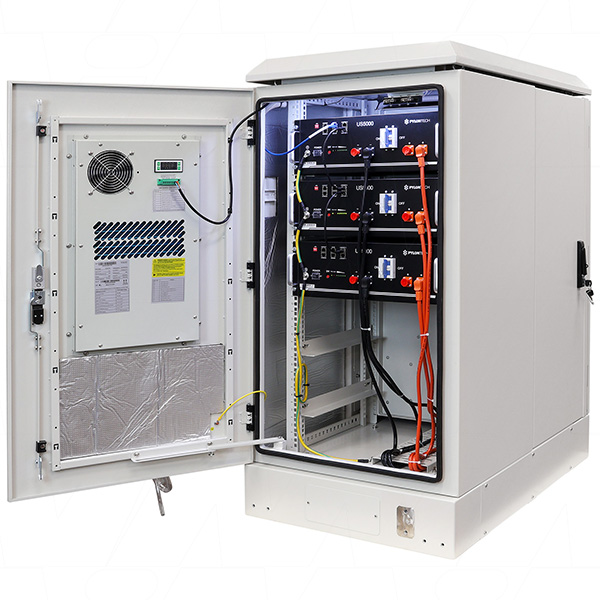

Install Ready IconEnepower Pre-wired Stand Alone Power System (SAPS) with built in A/C cooling for use in off-grid, grid connected and backup solar applications.

Install Ready to reduce your installation time and costs

This SAPS offers a 48V managed system, with 14.4kWh of battery storage (13.68kWh Usable) with a 5000VA Inverter Charger and is capable of handling up to a 4kW solar panel array.

Featuring:

  • Closed Loop / Managed All-in-one battery system for efficient system performance and extended service life
  • IP55 rated cabinet with A/C and Fan cooling – suitable for Arid environments
  • Australian design & constructed using components from the world’s best manufacturers
  • Design to be safe with quality BMS, Thermal protection, fusing and circuit breakers
  • Pre-wired to reduce installation time and associated costs
  • Easily expandable up to 25.6kWh of battery storage
  • Fully tailorable to your specific requirements and power usage
  • Full remote monitoring and support, by Master Instruments, via Victron Energy VRM
  • Factory tested and pre-programmed prior to dispatch

Using only quality components, from the world's leading renewable energy specialist manufacturers, components come with substantial warranty periods for added peace of mind.

Enepower Design-In Logo

Enepower Stand Alone Power Systems

Enepower products have been designed, constructed and supported by Master Instruments - Australian owned & operated battery specialists for nearly 85 years.

All Enepower products can be modified and tailored to your specific usage, size, performance and budgetary requirements. Please talk to the Engineers at Master Instruments to explore suitable options. Contact Us



Specifications:

Model Number EPESS-EBC25H-48-5-14.4-AIR
System Voltage 48V
Inverter Charger Victron Energy Mulitplus-II 48/5000/70-50-AU
Battery/s 14.4kWh - 3 x Pylontech US5000B
Usable Capacity 13.68kWh (95%)
Solar Controller Victron Energy Smart Solar MPPT 250|70
Monitoring & Control Victron Energy Cerbo GX Mk2
Graphical User Interface Victron Energy GX Touch 50
Protection Noark N852894-2P 80A/500VDC MCCB
  Noark N852901-2P 200A/500VDC MCCB
  Noark N84449-2P 10A/360VDC MCB
  Victron Energy Smart Battery Protect
Cabinet Enepower EBC25H-ODAIR
Cabinet Ingress IP55
Thermal Control 500W A/C Unit (Battery Compartment)
  Twin 120mm 48VDC Fans (PCE Compartment)
Busbar Copper Busbars (1000A Rated)
Compliance Built to meet AS/NZS 5139, AS/NZS 5033, AS/NZS 4777
Dimensions 1151mm x 650mm x 1315mm Tall
Flyer EPESS-EBC25H-48-5-14.4-AIR1764199733_1.pdf
