Pylontech PELIO-L-20.48 51.2V 400Ah 20.48kWh Slim-line ESS Floor Mounted System (4 Modules and Ground Bracket)

PELIO-L-20.48
Pylontech PELIO-L-20.48 51.2V 400Ah 20.48kWh Slim-line ESS Floor Mounted System (4 Modules and Ground Bracket)

$9632 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	PELIO-L-20.48
Selling Unit	EACH
Description	Pylontech PELIO-L-20.48 51.2V 400Ah 20.48kWh Slim-line ESS Floor Mounted System (4 Modules and Ground Bracket)
Application	Home & SME Solar Storage
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	51.2V
Nominal Capacity	400000mAh
Brand	Pylontech
Size	20.48kWh
Weight(kg)	182
Brand	Pylontech

PELIO-L 51.2V 300Ah 20.48kWh Slim-line ESS Floor Mounted System (4 Modules and Ground Bracket)

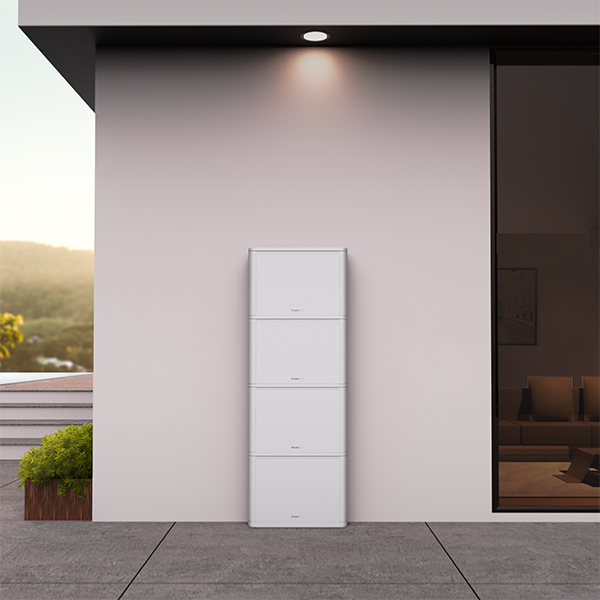

Pelio is a sleek & minimalist battery storage system specifically developed for modern residential properties.

With it's white steel facade, slim-line footprint and Indoor or outdoor and floor or wall mounting capabilities, the Pelio blends seamlessly into any residential or small commercial installation.

Scalable from 5.12kWh up to 102.4kWh, 24/7 monitoring capability and advanced battery management system, The Pelio BESS system will provide safe & reliable well into the future.

Features & Benefits:

Scalable & Modular design for systems 5.12kWh to 102.4kWh (up to 20 modules)
Lightweight and Slimline design
High Capacity 51.2V 100Ah modules 1C discharge capability
Cycle life: >8000 cycles @ 25°C with 95% DoD for daily cyclic applications
Advanced BMS with over discharge, over charge, over current and high/low temperature protection to ensure safe operation
IP65 Rated and suitable for Indoor or Outdoor installation
Floor or Wall mountable to adapt to any location (Wall - 3 modules max. Ground - 4 modules max)
24/7 Wifi Monitoring with simple to use mobile App
Monitor your energy production and consumption in real time
15 year design life
Compatible with many available Hybrid inverters
Meets international standards: IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, U1642,UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3
Clean Energy Council Approved (CEC)

Warranty: The Pelio-L comes with a standard warranty of 10 years.

Specifications:

Chemistry	LiFePO4
System Voltage (V)	51.2V
System Capacity (kWh)	20.48kWh
System Capacity (Ah)	400Ah
No of Modules	4
Charge Voltage (V)	56.0V - 56.8V
System Recommended Charge/Discharge (A)	100A (1 cable set) 200A (2 cable sets) 300A (3 cable sets) 320A (4 cable sets)
System Max. Charge/Discharge (A) - 15 Minutes	120A (1 cable set) 240A (2 cable sets) 360A (3 cable sets) 480A (4 cable sets)
System Peak Charge/Discharge (A) - 15 seconds	200A (1 cable set) 400A (2 cable sets) 600A (3 cable sets) 800A (4 cables sets)
Discharge Voltage (V)	44.8V - 56.8V
Depth of Discharge (DoD)	95%
Communications	RS485, CAN
Operation & Connection	WIFI (2.4G), USB2.0
Protection Class	IP65
Communications	RS485 / CAN
Design Life (Years)	15 years
Operating Temperature Charge	-0°C to +50°C
Operating Temperature Discharger	-10°C to +50°C
Altitude	<4000 metres
Humidity	5% - 95% RH - No Condensation

This product comes with: (click to view)

PELIO-L Battery Module (Qty dependant on model)
PELIO-Ground Bracket - Floor Installation Kit

System Integration Information:
The Pylontech Pelio-L can be integrated with many of the worlds leading inverter brands. Contact us for System integration information for the following brands:

pylontech compatible inverter brands
